Description

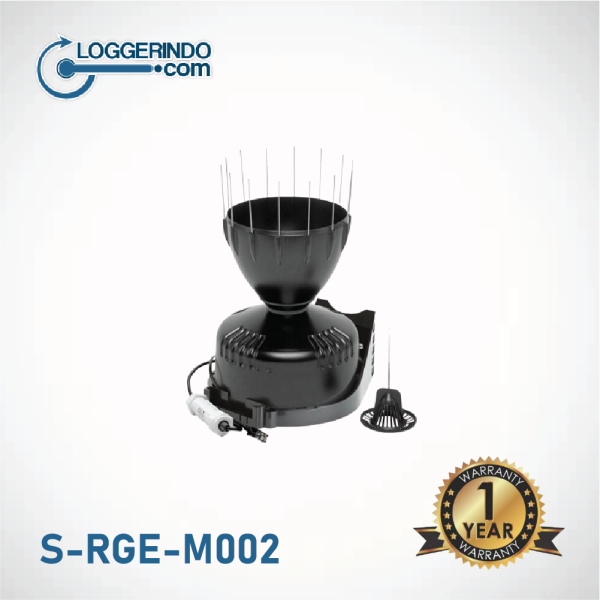

Davis® Rain Gauge Smart Sensors kompatibel dengan semua HOBO weather station loggers, HOBOware, dan HOBOlink. Menawarkan kemudahan penggunaan yang sama seperti Onset Smart Sensor yang ada, menyediakan HOBO weather stations yang hemat biaya untuk proyek. Fitur sensor konektor modular plug-in untuk kemudahan instalasi.
Dirancang untuk memenuhi pedoman Organisasi Meteorologi Dunia (WMO)
Spesifikasi
| Measurement Range | 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval |
| Accuracy | ±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour |
| Resolution | 0.01 in. (S-RGE-M002) or 0.2 mm (S-RGF-M002) |
| Operating Temperature Range | 0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F) |
| Environmental Rating | Weatherproof |
| Housing | UV-stabilized ABS plastic |
| Mechanism | Tipping spoon with magnetic reed switch pivots on metal shaft |
| Dimensions | 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area |
| Weight | 1.2 kg (2.7 lbs) |
| Bits per Sample | 12 |
| Number of Data Channels* | 1 |
| Measurement Averaging | No |
| Cable Length Available | 2 m (6.6 ft) |
| Length of Smart Sensor Network Cable* | 0.5 m (1.6 ft) |
