Description

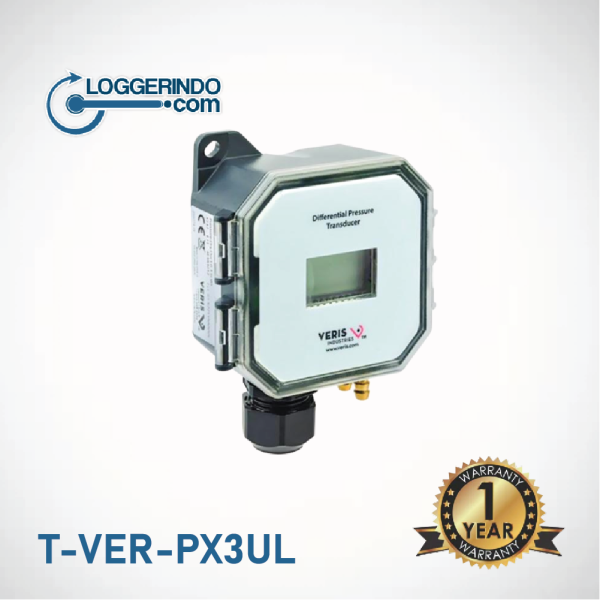

T-VER-PX3UL Transducer dapat mengukur tekanan atau kecepatan udara dengan membalik sakelar. PX3 tersedia dalam tiga konfigurasi pemasangan: saluran, panel, atau universal. Model saluran dan panel memiliki dua opsi rentang tekanan dan kecepatan: 0-1 “WC / 0-3.000 kaki / mnt atau 0-10” WC / 0-7.000 kaki / mnt, dengan tujuh sub-rentang tekanan dan delapan bidang yang dapat dipilih untuk kecepatan. Semua varian tersedia dengan dan tanpa layar. PX3 memiliki peringkat lingkungan IP65 / NEMA 4.
Persyaratan untuk digunakan dengan pencatat data tertentu:
- HOBO MX1100 series: a 0-5 Volt DC input cable (SD-VOLT-05) and external power provided by an AC adapter (AC-SENS-1)
- HOBO U12, UX120-006M, or ZW series: a 0-5 Volt DC input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1)
- HOBO RX3000: an analog input module (RXMOD-A1)
- HOBO U30: an analog input module (VIA)
- HOBO H22: an analog input module (S-FS-CVIA)
Fitur
- Sakelar rentang dan skala yang dapat dipilih, mengurangi waktu penyiapan
- Teknologi sensor yang canggih untuk operasi bebas perawatan jangka panjang
- Memantau tekanan positif dan negatif
Spesifikasi
- Media Compatibility Dry air or inert gas
- Input Power 12-30VDC, or 24VAC nominal
- Output Field-selectable: 2-wire, loop-powered 4-20mA (DC only, clipped and capped) or 3-wire 0-5V/0-10V
- Pressure Ranges: Unidirectional: 0.1/0.25/0.5/1.0” W.C. F.S. (25 pa/50 pa/100 pa/250 pa, F.S.), switch selectable; Bidirectional: ±0.1/±0.25/±0.5/±1.0” W.C. F.S. (±25 pa/±50 pa/±100 pa/±250 pa, F.S.), switch selectable
- Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, switch selectable
- Mode Unidirectional or bidirectional, switch selectable
- Display (option) Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
- Proof Pressure 3 psid (20.6kPa)
- Burst Pressure 5 psid (34.5kPa)
- Accuracy ±1% F.S. of selected range (combined linearity and hysteresis)
- Temperature Effect 1″ 0.05%/°C; 10″
- Zero Drift (1-year) 1″ 2.0% max.
- Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block)
- Operating Environment 0°- 60°C (32° to 140°F); 0 to 90% RH non-condensing
- Fittings Brass barb; 0.24” (6.1mm) o.d.
- Physical UL 94 V-O Fire Retardant ABS
