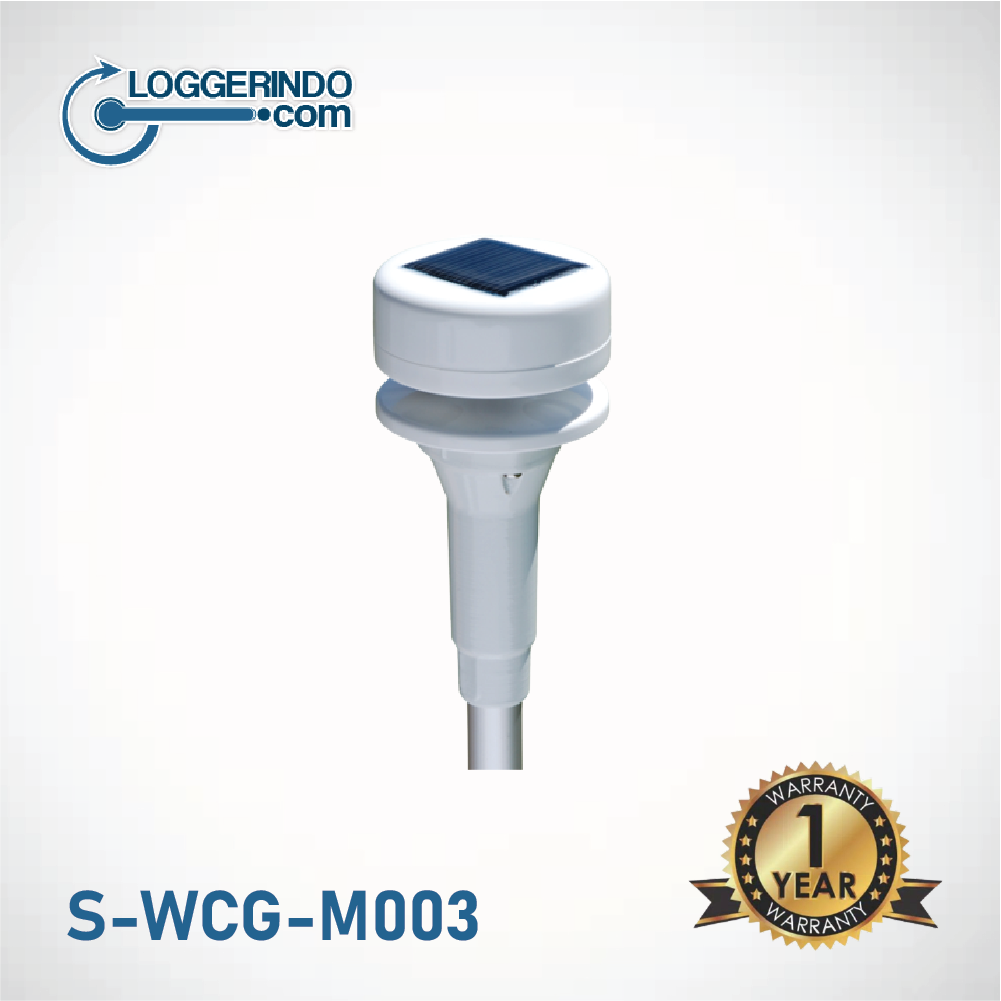

Ultrasonic Wind Speed and Direction Smart Sensor – S-WCG-M003

Description

Ultrasonic Wind Speed and Direction Smart Sensor kokoh tanpa ada bagian yg bergerak. Karena sensor ini ultrasonik, ia dapat mengukur kecepatan angin yang sangat rendah, hingga 0,4 m / s. Sensor ini plug-and-play dengan HOBO stations (produk: RX3000, Stasiun Mikro USB, H22, dan U30-NRC). Karena secara otomatis dikenali oleh stasiun HOBO, tidak perlu pemrograman, menghasilkan pemasangan yang cepat dan mudah. Sensor ini didukung oleh panel surya built-in sendiri.

Fitur

• Ringkas dan kokoh
• Plug-and-play dengan HOBO stations
• Cocok untuk mengukur kecepatan angin rendah
• Data angin akurat di semua arah
• Didukung oleh panel surya built-in sendiri
• Harga terjangkau

Spesifikasi

Wind Speed/Gust	Wind Direction
Measurement Range	0 to 41.16 m/s (0 to 92.07 mph)	0 to 359 degrees
Accuracy	±0.8 m/s (1.79 mph) or ±4% of reading, whichever is greater	0.2 to 3 m/s (0.44–6.7 mph): ±4 degrees >3 m/s (6.7 mph): ±2 degrees
Resolution	0.4 m/s (0.89 mph)	1 degrees (0 to 359 degrees)
Measurement Definition	Wind speed readings are taken every three seconds for the duration of the logging interval Wind speed: Average speed for the entire logging interval Gust speed: The highest three-second wind recorded during the logging interval See Measurement Operation.	Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation)
Operating Temperature Range Without Icing	-15°C to 55°C (5°F to 131°F)
Environmental Rating	Weatherproof
Housing	Polyacetal
Dimensions	Sensor length: 380 mm (14.96 inches) Sensor head diameter: 60 mm (2.36 inches) Sensor rod diameter: 16 mm (0.63 inches)
Weight	200 g (7 oz)
Power Supply	Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery
Bits per Sample	8 for each channel, 24 total
Number of Data Channels*	3
Measurement Averaging Option	Automatic averaging (see Measurement Operation)
Cable Length Available	3 m (9.8 ft)
Length of Smart Sensor Network Cable*	0.5 m (1.6 ft)
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
