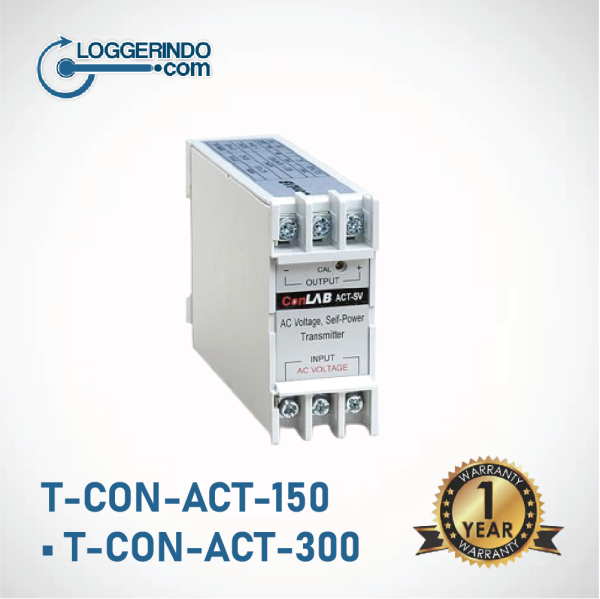

ConLab Volt AC Transmitter Sensor – T-CON-ACT-150 • T-CON-ACT-300

Description

Pemancar Tegangan AC adalah trafo bertenaga sendiri untuk memantau gelombang sinus dan tegangan AC fase tunggal. Tersedia dalam dua rentang pengukuran: 0 hingga 150 Volt AC, dan 0 hingga 300 Volt AC.

Requirements for use with specific data loggers:

• HOBO MX1100 series: a 4-20mA input cable (SD-MA-420)
• HOBO U12, UX120-006M, or ZW series: a 4-20mA input cable (CABLE-4-20mA)

Fitur:

• Tersedia dalam 2 rentang pengukuran: 0 hingga 150 & 0 hingga 300 Volt AC
• Membutuhkan kabel Input (CABLE-4-20mA)

Spesifikasi:

Ranges: 0-150 and 0-300 volts RMS

Sensor accuracy: < ±0.1% of span (20% to 120% of range) ±0.25% of span (10% of range)

Over range: +20% of span

Over load: +40% of span

Frequency: 60 Hz AC

Supply: Self-powered

Output: 0–20 mA

Response time to 90%: <240 msec

Operating conditions: -20° to 70°C (-4° to 158°F); 5-95% RH, non-condensing

Housing: Plastic polycarbonate

Protection Level
Box: According to IP-50 DIN 40050
Terminals: According to IP-10 DIN 40050

Mounting: Standard 35mm DIN rail

Notes: Because these sensors tie directly into the line, they should be used only by qualified personnel.

Requirements

For U12 & H8 Loggers: Input Cable (Part # CABLE-4-20mA)

For HOBO Energy Logger: FlexSmart Analog Module (Part # S-FS-CVIA)
