Description

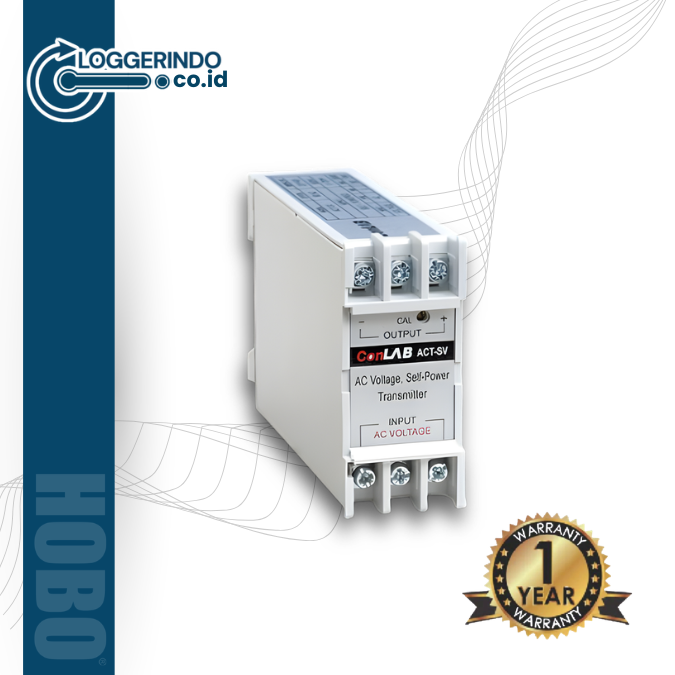

Pemancar Tegangan AC adalah trafo bertenaga sendiri untuk memantau gelombang sinus dan tegangan AC fase tunggal. Tersedia dalam dua rentang pengukuran: 0 hingga 150 Volt AC, dan 0 hingga 300 Volt AC.
Requirements for use with specific data loggers:
- HOBO MX1100 series: a 4-20mA input cable (SD-MA-420)
- HOBO U12, UX120-006M, or ZW series: a 4-20mA input cable (CABLE-4-20mA)
Requirements
- For U12 & H8 Loggers: Input Cable (Part # CABLE-4-20mA)
- For HOBO Energy Logger: FlexSmart Analog Module (Part # S-FS-CVIA)
Spesifikasi
- Ranges: 0-150 and 0-300 volts RMS
- Sensor accuracy: < ±0.1% of span (20% to 120% of range) ±0.25% of span (10% of range)
- Over range: +20% of span
- Over load: +40% of span
- Frequency: 60 Hz AC
- Supply: Self-powered
- Output: 0–20 mA
- Response time to 90%: <240 msec
- Operating conditions: -20° to 70°C (-4° to 158°F); 5-95% RH, non-condensing
- Housing: Plastic polycarbonate
- Protection Level
Box: According to IP-50 DIN 40050
Terminals: According to IP-10 DIN 40050
- Mounting: Standard 35mm DIN rail
Notes: Because these sensors tie directly into the line, they should be used only by qualified personnel.
