Description

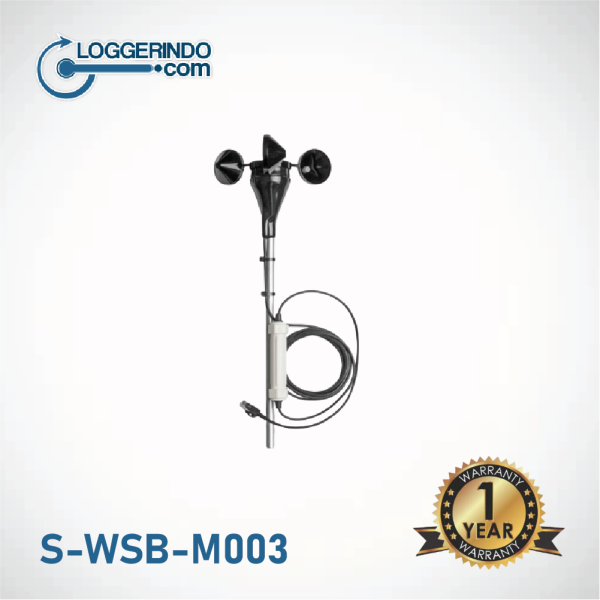

Ukur kecepatan angin dari 0 hingga 76 m / s (0 hingga 170 mph). Sensor pintar ini melaporkan kecepatan angin rata-rata dan hembusan 3 detik tertinggi. Titik awalnya adalah 1 m / s (2,2 mph) dan sensor bertahan hingga 170 mph. Model ini dilengkapi dengan kabel sepanjang 3m.
CATATAN: Tiang Lengan M-CAA Penuh atau Tiang Lengan Setengah M-CAB diperlukan untuk pemasangan.
Fitur
- 3 gelas anemometer dengan bantalan TEFLON® dan poros berilium yang dikeraskan
- Ukur kecepatan angin dari 0 hingga 76 m / s (0 hingga 170 mph)
- Ketahanan hingga 170 mph
Spesifikasi
- Measurement parameters: average wind speed and highest 3 second gust in logging interval
- Measurement range: 0 to 76 m/s (0 to 170 mph)
- Operating temperature range: -40° to 75°C (-40° to 167°F)
- Accuracy: ±1.1m/s (2.4 mph) or ±4% of reading whichever is greater
- Resolution: 0.5 m/s (1.1 mph)
- Starting threshold: 1 m/s (2.2 mph)
- Maximum wind speed survival: 76 m/s (170 mph)
- Distance constant: 3 meters
- Housing: 3 cup anemometer with TEFLON® bearings and hardened beryllium shaft
- Dimensions: 190 cm x 51 cm (7.5″ x 3.2″)
- Approximate weight: 300 g (10 oz)
- Cable length: 3 meter (10′)
- Length of Smart Sensor Network Cable: 0.5m
- Service life: greater than 5 year life typical
Note: Cross arm recommended or pole mount (2 hose clamps required for pole mount)
The CE marking identifies this product as complying with all relevant directives in the European Union (EU). To minimize measurement errors due to ambient RF, use the shortest possible probe cable length and keep the probe cable as far as possible from other cables.
